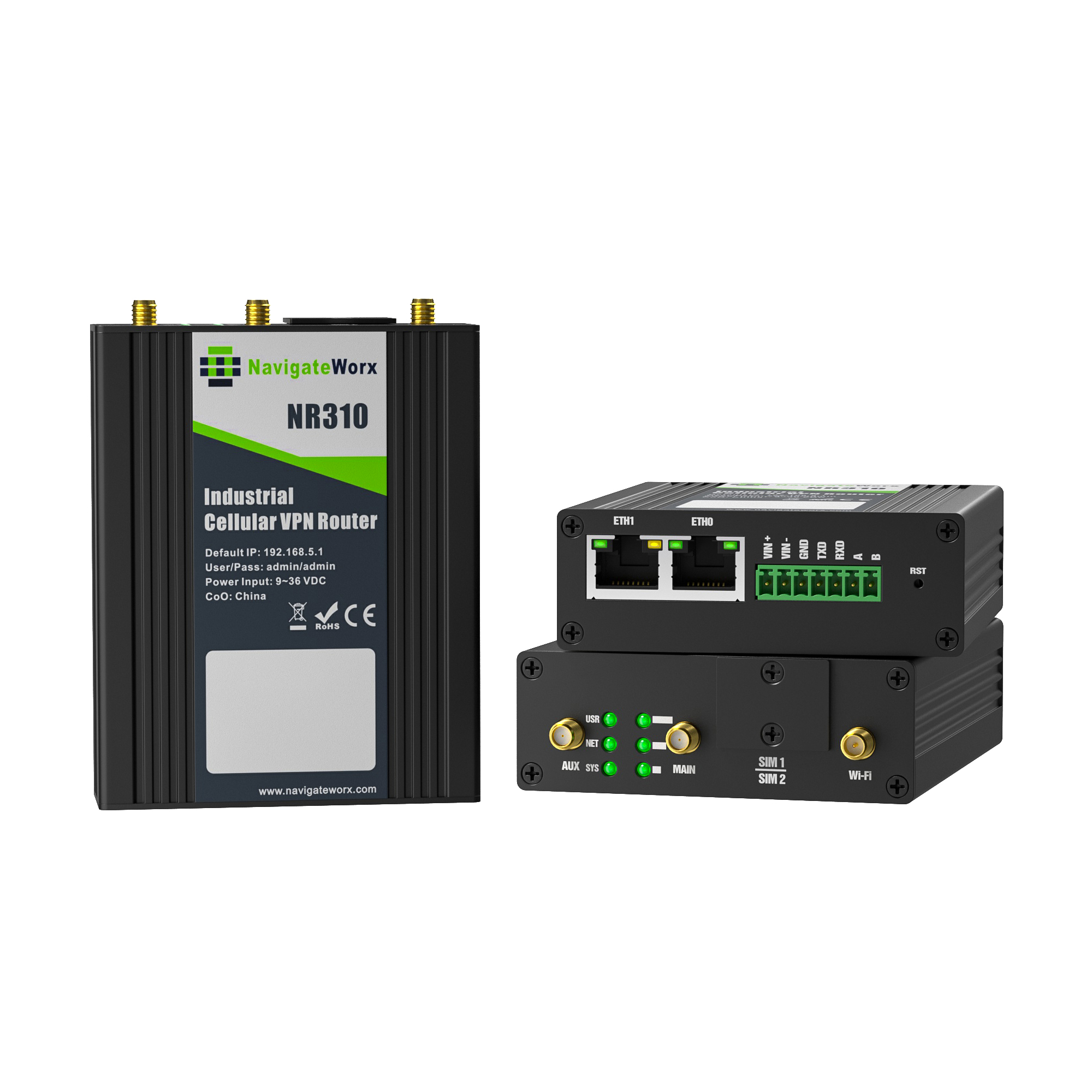

Navigateworx NR310 industrial cellular VPN router enables wireless data connectivity over public and private LTE cellular networks at 4G speeds.

NR310 router has dual SIM backup, 2 Ethernet ports, RS232 and RS485 interfaces are provided to support Serial to IP communication. NR310 router supports 9 to 36 VDC wide range power inputs, designed with reverse-voltage protection mechanism for greater reliability. It is an advanced choice for universal wireless M2M applications with reliable features for data transmission.

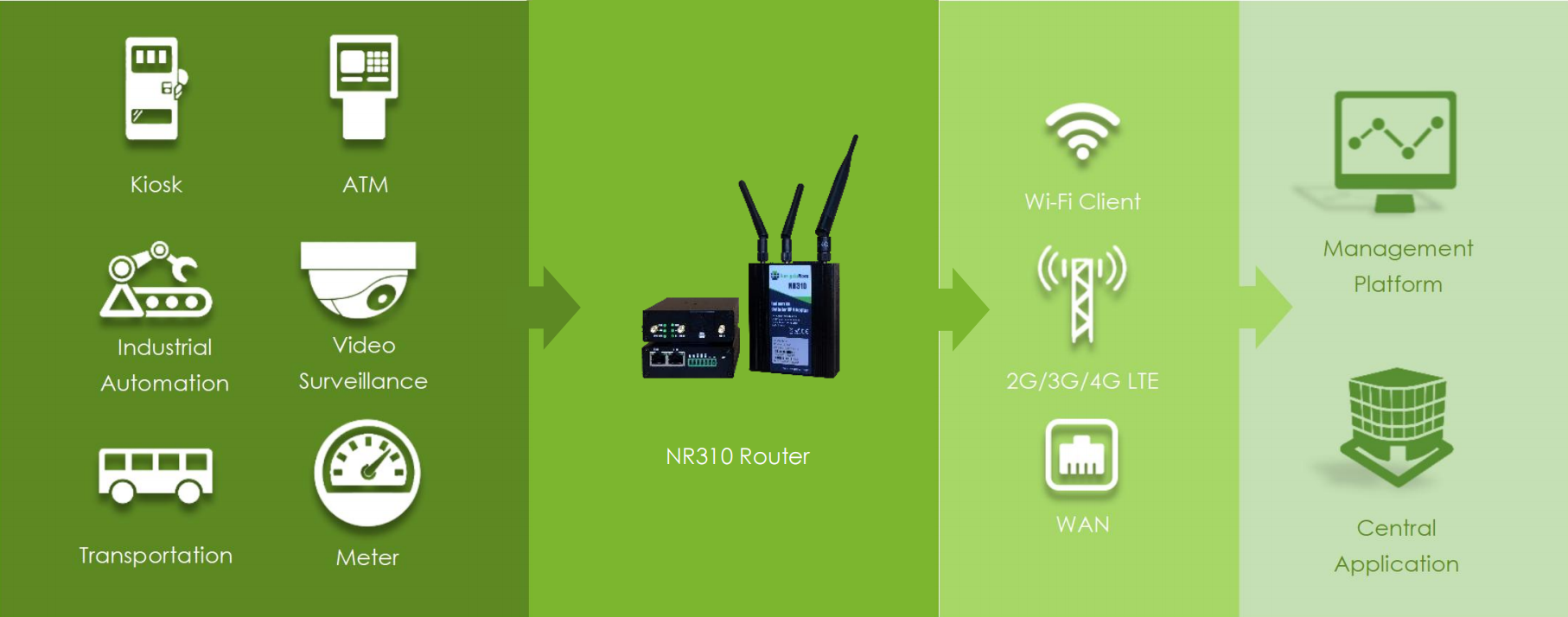

Industrial internet access

• Wireless Mobile Broadband 2G / 3G / 4G Connection
• Remote access to SCADA System for Industrial Automation
• Reduce high costs for on-site maintenance

Designed for industrial usage

• Power Input Range 9 to 36 VDC
• Industrial designed for harsh environment
• Aluminum casing and din-rail installation

Secure and reliable remote connection

• Connection manager ensure seamless communication
• Support Multiple VPN tunnels for data encryption
• Firewall prevents unsafe and unauthorized access

Easy to use and easy maintenance

• User-friendly web interface for human interaction
• Easy configuration for deployment
• Support Web, Central Management Platform

Cellular Interface

• Standards: FDD-LTE/TDD-LTE, WCDMA/UMTS/HSPA/HSPA+/EDGE/GPRS,
• 2× SMA female antenna connector
• 2 x SIM (3.0V & 1.8V)

Ethernet Interface

• Standard: IEEE 802.3, IEEE 802.3u
• Number of Ports: NR310: 2 x 10/100 Mbps, RJ45 connector
• 1 x WAN interface (configurable on Web GUI)
• 1.5KV magnetic isolation protection

Serial Interface

• 1×RS232 (3 PIN): TX, RX, GND
• 1 x RS485 (2 PIN): Data+(A), Data-(B)
• Baud rate: 300bps to 115200 bps
• Connector: terminal block
• 15KV ESD protection

Other Interfaces

• 1× RST button
• LED instruction: 1 x SYS, 1 x NET, 1 x USR, 3 x RSSI

Software

• Network protocols: TCP, UDP, IPv4, ICMP, NTP, DNS, HTTP, HTTPS, ARP, PPP, DHCP, IP Passthrough
• VPN: IPSec, GRE, OpenVPN, DMVPN, L2TP, PPTP, Wireguard, Zerotier
• Policy: RIPv1/RIPv2/OSPF/BGP dynamic route (optional)
• Firewall & Filter: Port forwarding, DMZ, anti-DoS, ACL
• Serial port: TCP server and client, UDP
• Management: Web, Central Management Platform

Power Supply and Consumption

• Connector: 2-pin 3.5 mm female socket with lock
• Input voltage range: 9~36VDC
• Power consumption:

Idle: 100 mA@12V

Data link: 400 mA (peak) @12V

Physical Specification

• Ingress Protection: IP30
• Housing & Weight: Aluminum, 220g

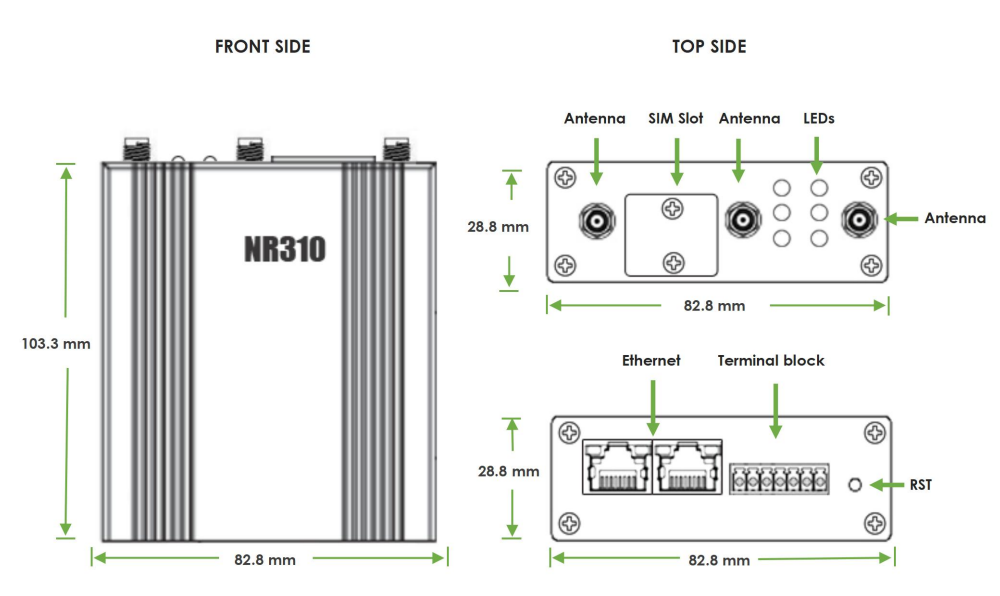

• Dimension: 103.3 mm x 82.8 mm x 28.8 mm (excluding antenna)
• Installations: Din-rail mounting

Environmental

• Operation temperature: -40~+75℃
• Store temperature: -40~+85℃
• Operation humidity: 5% to 95% non-condensing
